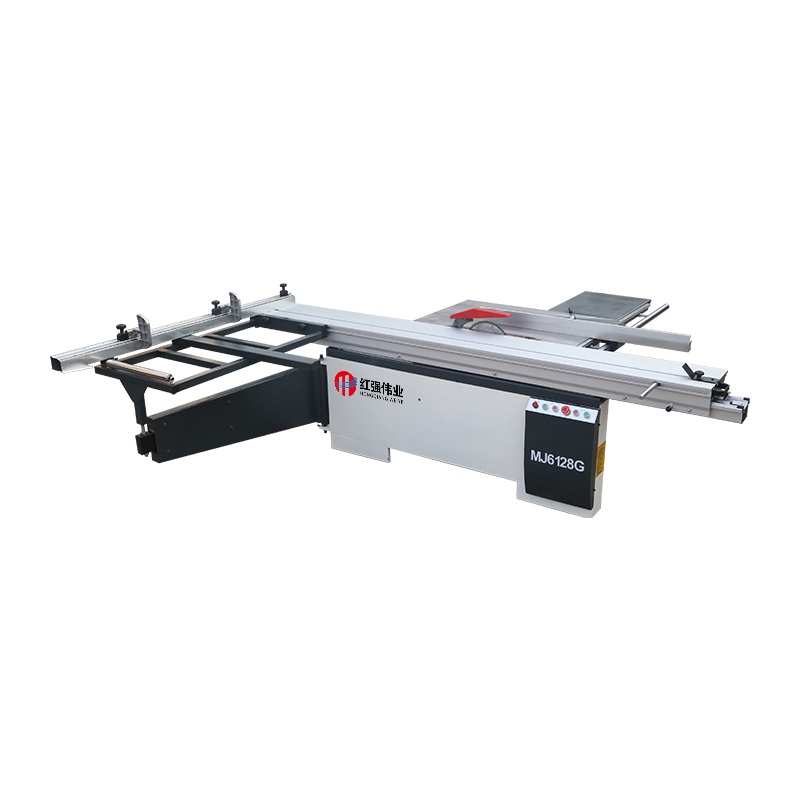

Function Feature:
Apply to processing all kinds of density boards,shaving boards,wood-based panels,PVC boards,organic glass plates,solid wood andother with wood structure similar hardness.

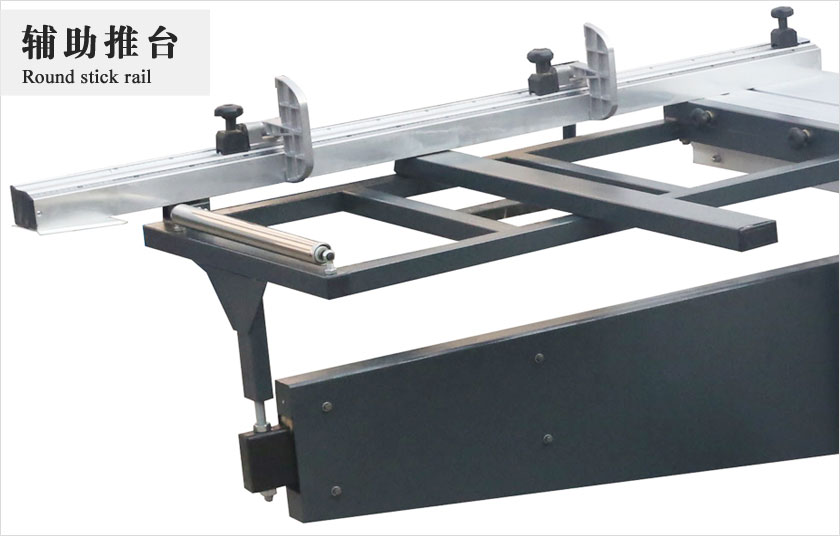

. Movable table guide track is plating chromium steel bars structure,ecact and durable.
. Made of high-strength extruded aluminum alloy,movable talole is high in strength and won't bend
. With oxidation treatment,Movable table surface is beautiful and hardwearing.
Technical Data:
| Dimensions Sliding table | 2800x320mm |
| Max.length panel cut | 2800mm |
| Max.height panel cut | 75mm |

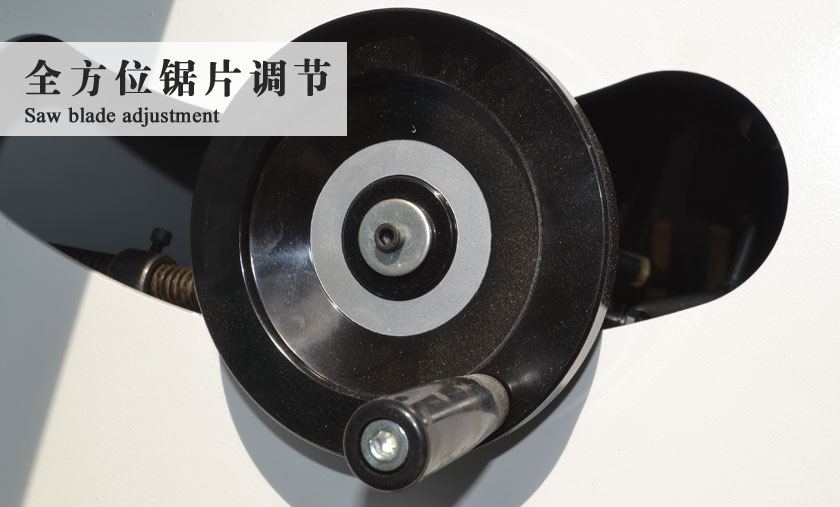

| Tilting angle saw blade | 90°mm |
| Dia of saw blade | Ø300mm |
| Dia Scoring saw blade | Ø120mm |
| Speed of main saw blade | 4500/6000rpm |
| Speed of scoring saw blade | 6000/8000rpm |
| Spindle Diameter | Ø30mm |
| Spindle Diameter of Scoring saw | Ø20mm |
| Main motor | 4.0Kw |
| Scoring Motor | 0.75Kw |
| Voltage | 380v/50hz 3phase |
| Body packing size | 1950x1100x1100mm |
| Table packing size | 2800x420x280mm |
