Edge banding machine

  •  HQ365TG Automatic edge banding machine

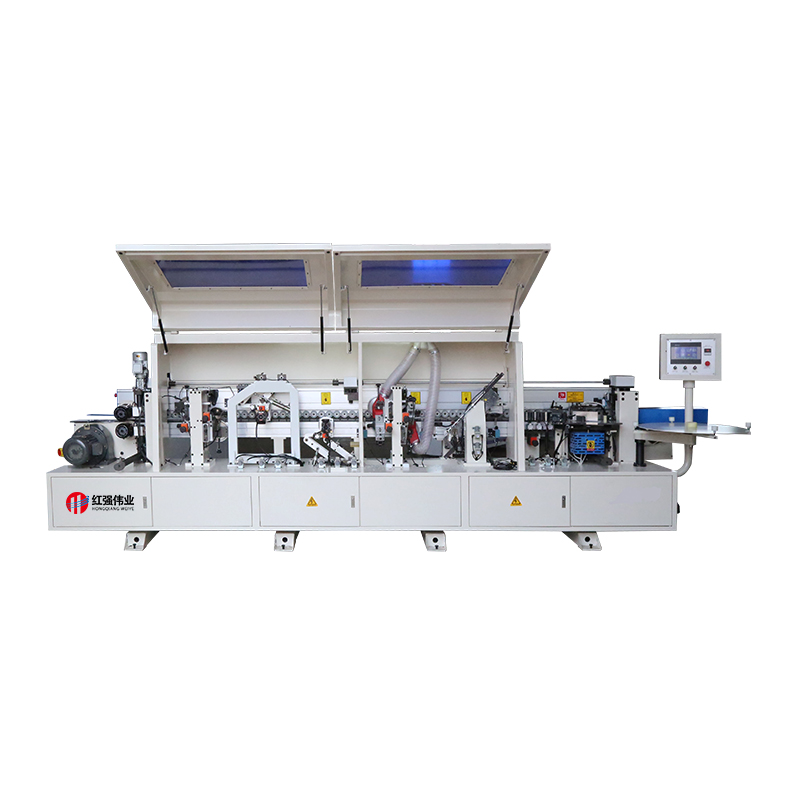

 HQ365TG Automatic edge banding machine

HQ365TG Automatic edge banding machine

Function Feature:

The machine is applied to solid board, fiberboard,shaving boards, etc of straight line edge banding, edge banding material article available solid wood, PVC, melamine, thin veneer, etc.
. Using imported quality engines and electric components
. Serialized products,a wide range of selection by customers.
. High precision and effciency.

Technical Data:

Thickness of the panel 10-60mm
Edge band thickness 0.4-3mm
Min length of the panel ≥80mm
Min length of the wood ≥160mm
Feeding speed 12-20m/min
Air pressure 0.6mpa
Voltage 380v,50hz, 3phase
Total power 9.0kw
Packing size 5200*1100*1600mm
Weight 2300kg
